FR-S/86/BRZ GReddy Aluminum Radiator TW-R – Pre-order, Call For ETA

JDM-spec. GReddy Aluminum radiator TW-R ZN6/ZC6

P/N	Chassis	Vehicle	Rad. Thickness
12013803	ZN6	Scion FR-S/86/BRZ	36mm



Product features:
By making the core thickness thicker than the normal radiator, the capacity of the cooling water is greatly secured.
Achieves improved cooling efficiency and reduced pressure loss. In addition, it is made of all-aluminum, reducing the increase in weight.
(Core thickness: 36 mm)

* Without radiator cap

[Compatible models] JDM Toyota 86/Subaru BRZ
Vehicle type: ZN6/ZC6
E/G model: FA20
Year: 12.04 ~
Remark: MT/AT common

— — —

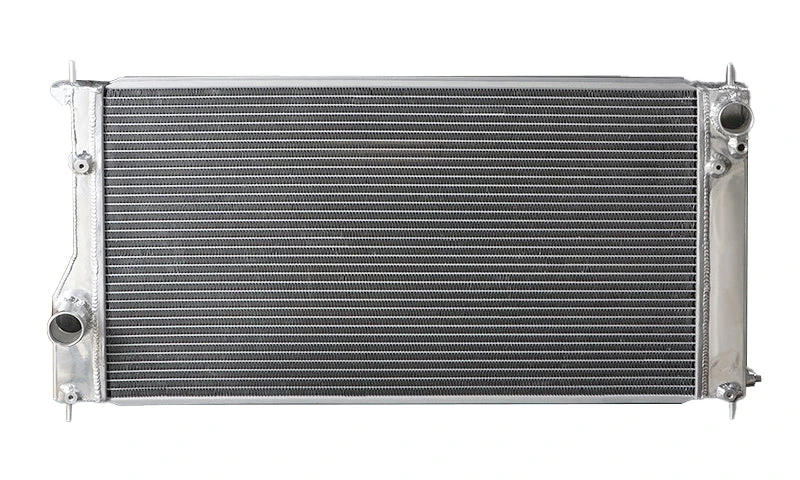

JDM GReddy Aluminum radiator TW-R

Sports radiator with 2-layer wide tube core made of all aluminum

• By adopting a 2-layer wide tube, a capacity equivalent to many simlar 3-layer structures.

• Achieves more than double the cooling water capacity of the genuine product with reduces pressure loss.

• In addition, by adopting all aluminum products, it reduces the weight increase and supports from street to circuit.

All models utilize our TYPE-S size radiator cap.  Some applications will also include our high pressure GReddy Radiator Cap with a valve opening pressure of 127 kPa (1.3 kg/cm2).

Made of polished aluminum

The use of aluminum improves strength and corrosion resistance. The the end-tanks are polished to dress up the engine bay.
