GReddy Performance Products Civic Type R Hi-Capacity Engine Oil Cooler Kit – FK8

12058003 – 2017-2019 FK8 Civic Type R
 – FK9 Engine Oil Cooler Kit (center grill, over intercooler)

* Not compatible with 2020 model Type R

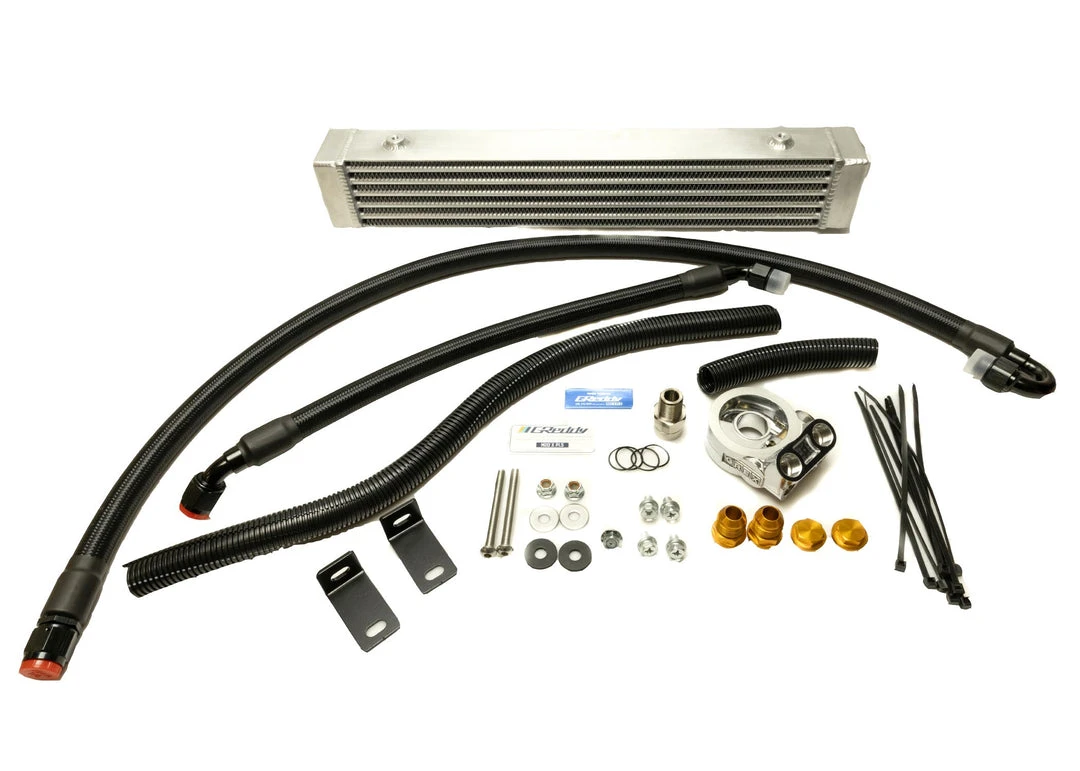

NS1010G – 10row GReddy Oil Cooler with -10 XRP lines

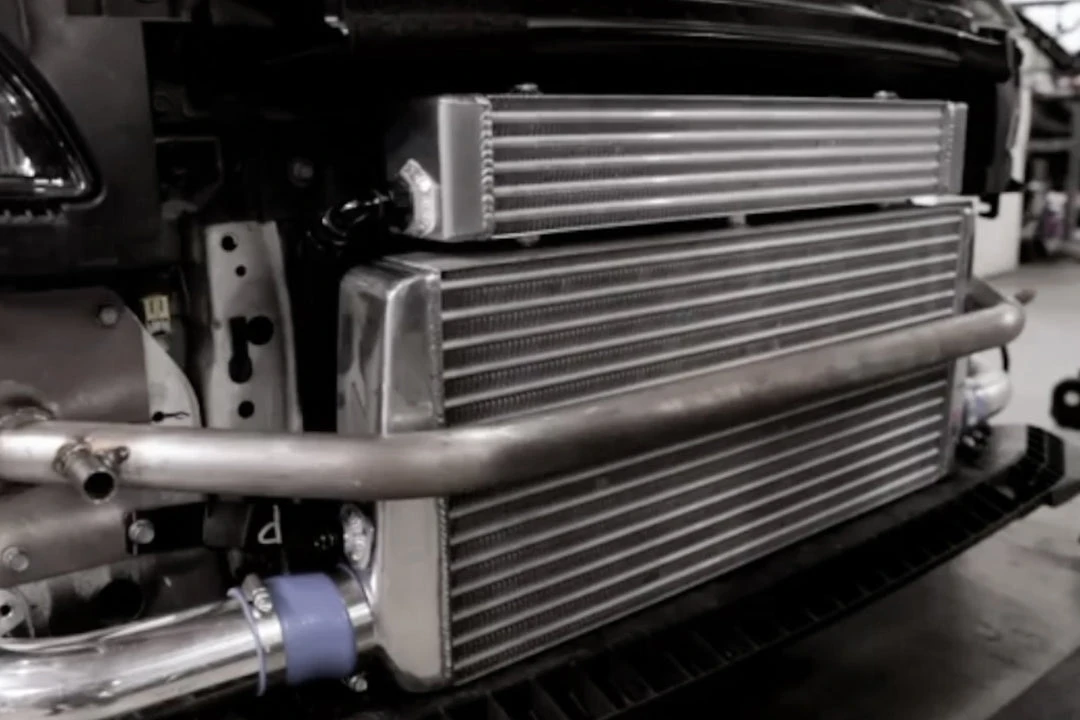

Mounts above intercooler behind center grill

M20xP1.5 GREX Oil Block Adapter with built in thermostat

and ducting plate, brackets, hardware

K-type L core (+TBAcc or +0.TBA quarts)

* Recommend to use GReddy Oil Filter OX-05 M20-P1.5, Dia. 65mm, H75mm p/n 13901105 or equivalent



The GReddy Performance Products Civic Type R Oil Cooler Kit addresses the documented cooling demands of the high performance K20C1 engine. By mounting a high capacity K-type Koyo core, just above the intercooler, in an unused area just behind the front grill, it does not hamper air-flow. For constant oil temperatures, the other key component in the kit, is the “tried and true” GREX oil block adapter with integrated thermostat for quick engine oil warm ups. The oil block and 10row oil cooler is connected by high flow -10 AN fittings high-performance braided lines. The complete kit also includes bolt-on brackets, necessary hardware.
