GReddy metal turbine flange gaskets for high pressure. 12 types for the various shapes of GReddy / Mitsubishi Turbine Housings.
 (it is always recommend to replace the gasket, if the gasket is removed.)

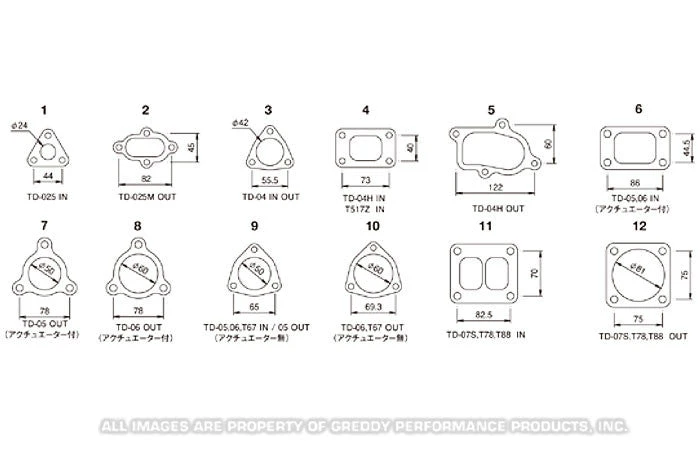

GReddy Turbo Gasket Reference Guide
| TDO25 | Actuator | Inlet    #1 | 11900100 | |
| TD025 | Actuator | Outlet  #2 | 11900101 | |
| TD025M | Actuator | Outlet  #2 | 11900101 | |
| TDO4 | Actuator | In/Out #0 | 11900120 | |

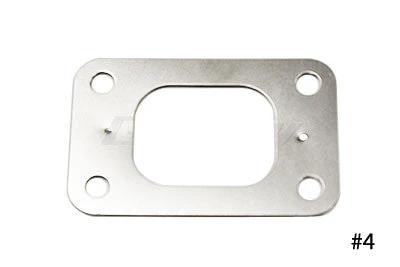

| TD04H | Actuator | Inlet    #4 | 11900123 | (TD04H, T517Z, T518Z*, T618Z**, T620Z Turbochargers) |

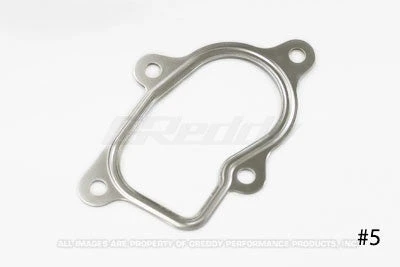

| TD04H | Actuator | Outlet  #5 | 11900121 | |

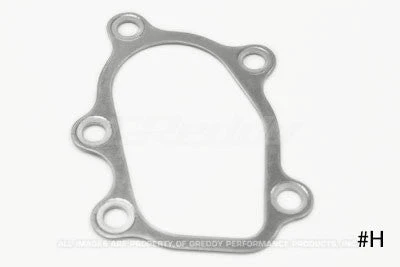

| T517Z | Actuator | Outlet  #H | 11900133 | (Honda T517Z, T518Z TK, excludes WRX) |

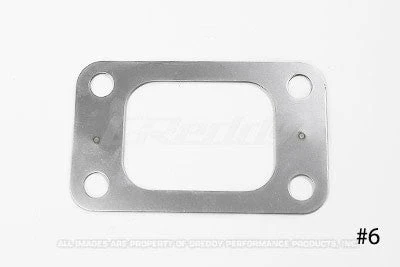

| TDO5(H) | Actuator | Inlet    #6  | 11900131 | |

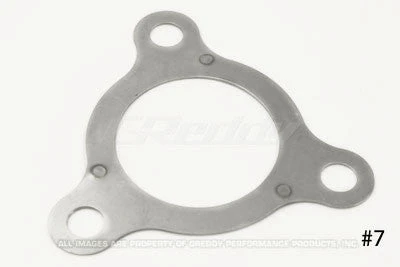

| TDO5(H) | Actuator | Outlet  #7 | 11900132 | |

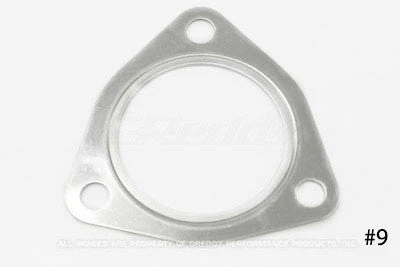

| TDO5(H) | External W/G | Inlet    #9 | 11900130 | |
| TDO5(H) | External W/G | Outlet  #9 | 11900130 | |
| T618Z | Actuator | Outlet  #M | 11900136 | (RX8 TK) |
| TDO6(H) | Actuator | Inlet    #6 | 11900131 | |

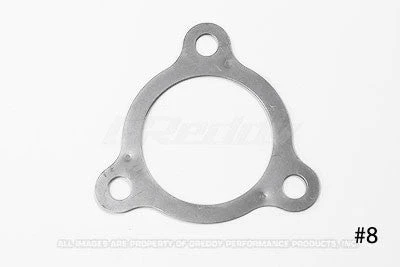

| TDO6(H) | Actuator | Outlet  #8 | 11900141 | |
| TDO6(H)/T67 | External W/G | Inlet    #9 | 11900130 | |

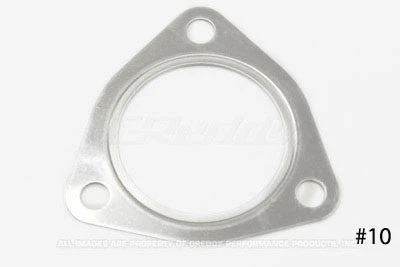

| TDO6(H)/T67 | External W/G | Outlet  #10 | 11900140 | |
| TD06SH (8.10.12cm2) | External W/G | Inlet    #6 | 11900131 | |
| TD06SH (8.10.12cm2) | External W/G | Outlet  #6 | 11900141 | |

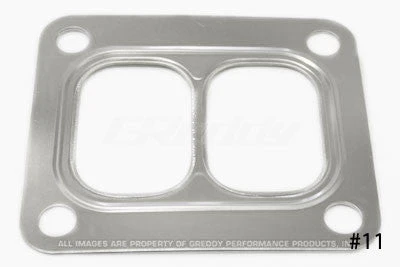

| TD07S/T78/T88 | External W/G | Inlet    #11 | 11900150 | (also T88H) |

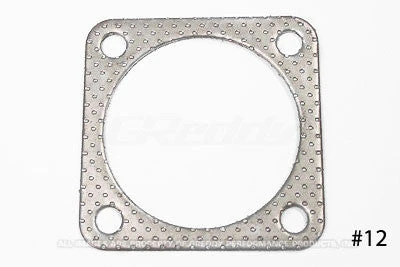

| TD07S/T78/T88 | External W/G | Outlet  #12 | 11900151 | * (for square flange type, not 94mm V-band) |
11900151*** (Composite with metal O-ring)
T518Z*Â Â (11900123 excludes WRX T518Z application)
T618Z** (RX8 T618Z outlet applications uses 11900136)
| Gasket Type | #6 – 11900131 TD05(H) Act-In, TD06(H) Act-In, TD06SH Ext-In, #9 – 11900130 TD05(H) Ext/In-Out, TD06(H)T67 Ext-In, #8 – 11900141 TD06(H) Act-Out, TD06SH Ext-Out, #10 – 11900140 TD06(H)-T67 Ext-Out, #7 – 11900132 TD05(H) Act-Out, #5 – 11900121 TD04H Act-Out, #11 – 11900150 TD07S-T78-T88 Ext-In, #12 – 11900151 TD07S-T78-T88 Ext-Out, #4 – 11900123 TD04H Act-In, #H – 11900133 T517Z Act-Out (Honda TK – RB TK), DISCONTINUED #M – 11900136 RX8 T618Z Act-Out, #0 – 11900120 TD04 Act In-Out |
|---|
