Original price was: $2.00.$1.60Current price is: $1.60.
- Shop with Confidence, Pay Safely
- Enjoy top quality items for less
- Nature-friendly materials, 100%.
- Uncompromising quality, every time.
USE THE PULL-DOWN MENU ABOVE TO SELECT ITEM, THEN ADD TO CART ^
Â

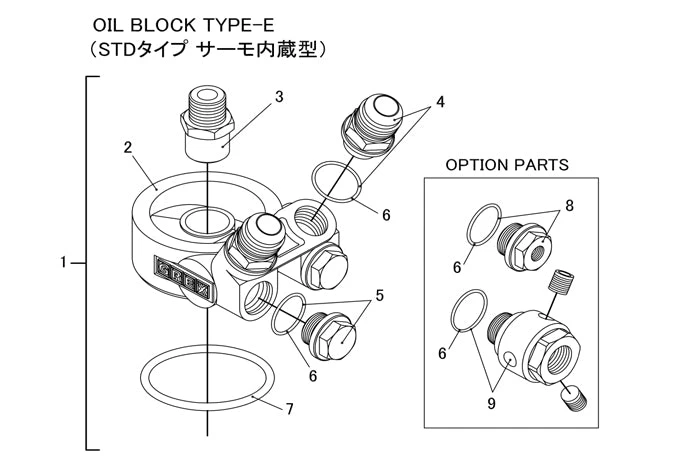

 Oil Block Type-E (STD F) – ANÂ
Large O-ring – Dia. 57mm  –  12401103
Small Fitting O-ring – Dia. 22mm  –  12401101
GReddy M18xP1.5 gold -10AN Fitting with O-ring – 12005103
GReddy M18xP1.5 gold Plug Fitting with O-ring – 12401121
   *Optional M18xP1.5 Sensor adapter fittings (here)
Oil Block Center Bolt 3/4 x 16UNF / 3/4 x 16UNF Â – Â 12002812
Oil Block Center Bolt M20xP1.5 / 3/4 x 16UNF Â – Â 12401152
Oil Block Center Bolt M20xP1.5 / M20xP1.5 – Â 12002813
Â

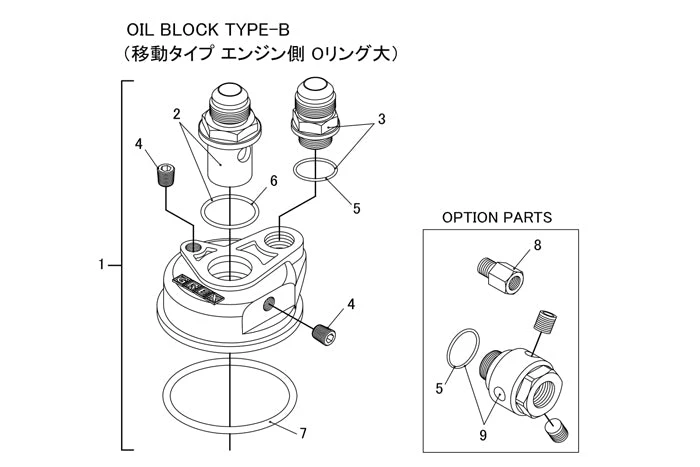

 Oil Block Type-B (Reloc Filter F) – Larger O-ring – AN
Large O-ring – Dia. 62mm  –  12401104
Center Fitting O-ring – Dia. 28mm  –  12401102
Small Fitting O-ring – Dia. 22mm  –  12401101
GReddy M18xP1.5 gold -10AN Fitting with O-ring – 12005103
Oil Reloc. Block Center Fitting (Female 3/4x16UNF / -10AN) –  12401145
Oil Reloc. Block Center Fitting (Female M20xP1.5 / -10AN) –  12401149
1/8 BSP (JDM 1/8PT) plug (black) – 11900672
   *Optional 1/8BSP  Sensor extension adapter fittings – 12401105
Â

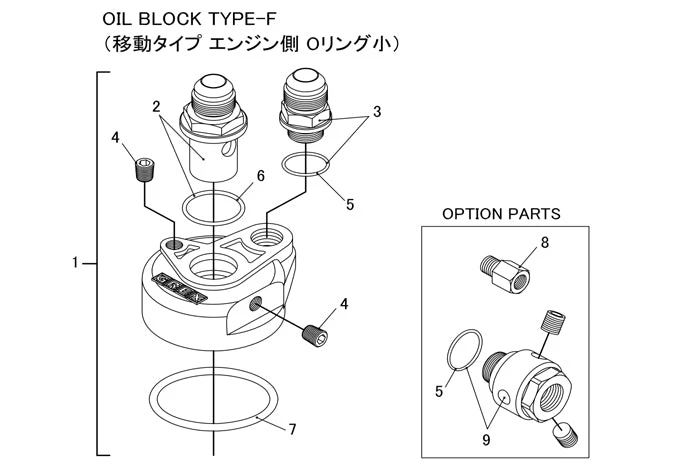

Oil Block Type-F (Reloc Filter F)Â – Smaller O-ring – AN
Large O-ring – Dia. 57mm  –  12401103
Center Fitting O-ring – Dia. 28mm  –  12401102
Small Fitting O-ring – Dia. 22mm  –  12401101
GReddy M18xP1.5 gold -10AN Fitting with O-ring – 12005103
Oil Reloc. Block Center Fitting (Female 3/4x16UNF / -10AN) –  12401145
Oil Reloc. Block Center Fitting (Female M20xP1.5 / -10AN) –  12401149
1/8 BSP (JDM 1/8PT) plug (black) – 11900672
   *Optional 1/8BSP  Sensor extension adapter fittings – 12401105
  Â

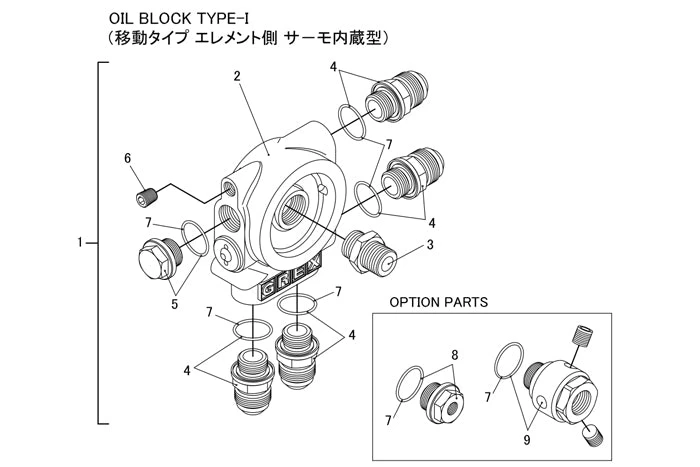

 Oil Block Type-I (External Filter M) – AN
Small Fitting O-ring – Dia. 22mm  –  12401101
GReddy M18xP1.5 gold -10AN Fitting with O-ring – 12005103
GReddy M18xP1.5 gold Plug Fitting with O-ring – 12401121
   *Optional M18xP1.5 Sensor adapter fittings (here)
Oil Filter Block Center Fitting (Male / 3/4x16UNF)Â – Â 12401116
1/8 BSP (JDM 1/8PT) plug (black) – 11900672
Â

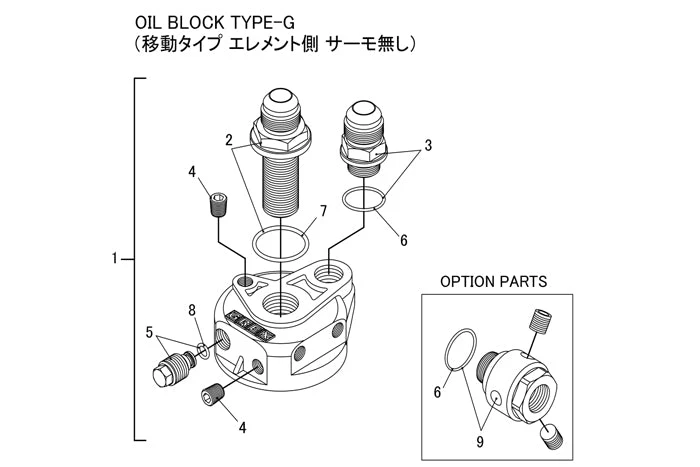

 Oil Block Type-G (Filter Reloc M) – AN
Center Fitting O-ring – Dia. 28mm  –  12401102
Small Fitting O-ring – Dia. 22mm  –  12401101
GReddy M18xP1.5 gold -10AN Fitting with O-ring – 12005103
   *Optional M18xP1.5 Sensor adapter fittings (here)
Oil Reloc. Block Center Fitting (Male 3/4x16UNF / -10AN)Â – Â 12401142
1/8 BSP (JDM 1/8PT) plug (black) – 11900672
M14 plug union w/ 6mm o-ring  – 12401100
| Replacement Part | 12401101 – 22mm O-ring – AN Fitting O-ring, 12401102 – 28mm O-ring – Center Reloc. Fitting O-ring, 12401103 – 57mm O-ring – Block O-ring, 12005103 – M18xP1.5 -10AN Fitting w/ O-ring (gold)*, 12401121 – M18xP1.5 Plug Fitting w/ O-ring (gold), 12002812 – Female 3/4x16UNF / 3/4x16UNF Oil Block Type E (Engine/Filter) Center Bolt, 12401152 – Female M20xP1.5 / 3/4x16UNF Oil Block Type E (Engine/Filter) Center Bolt, 12002813 – Female M20xP1.5 / M20xP1.5 Oil Block Type E (Engine/Filter) Center Bolt, 12401145 – Female 3/4x16UNF / -10AN Oil Block Type B/F (Engine/AN) Center Bolt, 12401149 – Female M20xP1.5 / -10AN Oil Block Type B/F (Engine/AN) Center Bolt, 12401116 – Male 3/4x16UNF / 3/4x16UNF Oil Block Type I (Oil Block/Filter) Center Bolt, 12401142 -Male 3/4x16UNF / -10AN Oil Block Type G (Filter/AN) Center Bolt, 11900672 – 1/8 BSP (JDM 1/8PT) port plug, 12401105 – 1/8 BSP (JDM 1/8PT) Male/Female Sensor adapter extension, 12401120 – M14 port plug union, 12401104 – 62mm O-ring – Block O-ring |
|---|
